5’X6’7″ W-Style Double Ladder Scaffold Frame Set

Weight: 122.82

SKU: USA-429AC-S Category: Tags: , , , ,


5ft X 6ft 7in W-Style Double Ladder Scaffold Frame Set

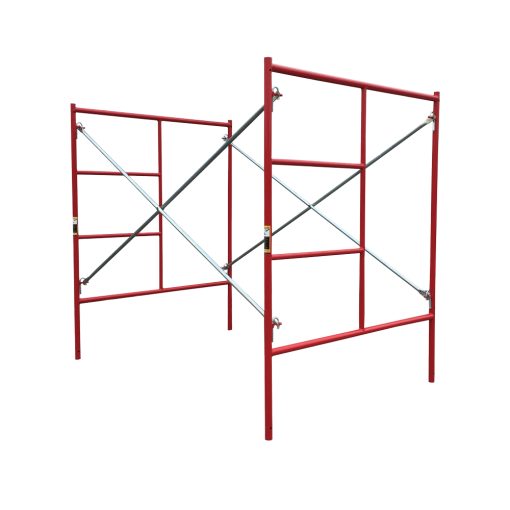

Double Ladder Scaffold Set of Waco style 5ft x 6ft7in Double Ladder Scaffold Frames. The ladder portion of these frames provides multiple platform locations for working, materials or tools. It is also climbable making these frames an excellent choice for a scaffold tower or as end pieces to a masonry scaffolding platform. Frame sets include 7ft Scaffold Tube Cross Braces, Coupling Pins and Spring Clips.

Waco Scaffolding Frame Set Includes:

2 USA-429A frames

2 USA-303 cross braces

2 USA-100 coupling pins

2 USA-113 spring clips


Width: 5′

Height: 6’7″

Weight: 122.82 lbs

Frame leg diameter: 1-5/8″

Wall thickness: 0.090″

Top lock: 7″

Lock type: candy cane

Drilled hole: 90 degrees

Finish: powder coat red

High grade Q-235 steel

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. These scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. This scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame

Additional information

Weight 122.82 lbs
Dimensions 79 × 60 × 7 in
