5ft X 6ft 7in W-Style Walk-Thru Scaffold Frame Set


5ft X 6ft 7in W-Style Walk-Thru Scaffold Frame Set


5’X6’7″ W-Style Walk-Thru Scaffold Frame Set

Weight: 121.88 lbs

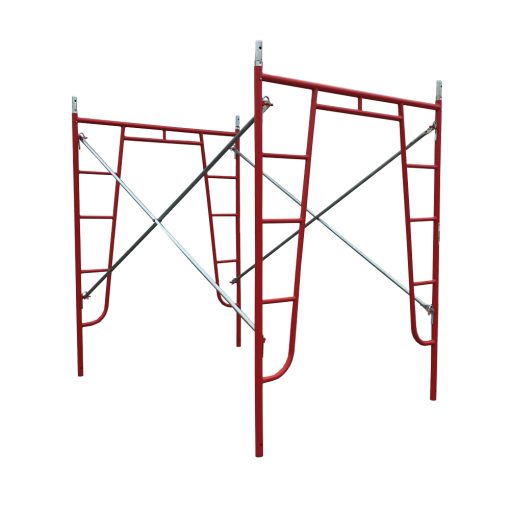

5’X6’7″ W-Style Walk-Thru Scaffold Frame Set

This Walk-Thru Scaffold Frame Set is made from high-quality (not recycled) steel and are strength-tested to ensure quality. Frame sets include 7ft Scaffold Tube Cross Braces, Coupling Pins and Spring Clips. These Waco-Style walk-thru frames are great for masonry applications or anywhere a long continuous work platform is needed.

Each Set Includes the Following Items:
2 USA-634B Scaffolding Frames
2 USA-303 7ft Cross Braces
4 USA-100 Coupling Pins
4 USA-113 Spring Clips


Width: 5′

Height: 6’7″

Frame Leg: 1-5/8″

Wall Thickness: 0.090″

Top Lock: 7″

Lock Type: Candy Cane

Drilled Hole: 90 degrees

Finish: Powder Coat Red

Weight Per Set: 121.88 lbs

Frame Style: Waco

High grade Q-235 steel

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. These scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. This scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame

Additional information

Weight 121.88 lbs
Dimensions 79 × 60 × 7 in
