12 CUFT Hydraulic Mortar Mixer

$11,599.00

12 CUFT Hydraulic Mortar Mixer

$11,599.00

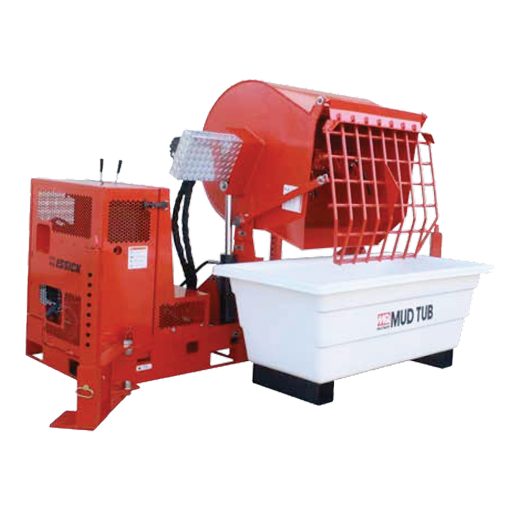

12 Cubic Ft Hydraulic Mortar Mixer

*Mud Tub not included

SKU: USA-PRO12 Category: Tags: , , , , ,

Description

12cuft Hydraulic Mortar Mixer

  • Reduced fatigue by enabling operator to load at waist level. Ergonomically designed to load low and dump high.
  • Adapt to any job site, while maintaining a compact footprint, with 130° swing-away stabilizers.
  • Extra thick 1/4″ steel drum wrap with 3/8″ ends resists wear and dents.
  • Adjustable height – discharge height 24″ ~ 42.5″.
  • Easily fits in a standard pickup truck bed with its compact design with inboard hydraulic motor.
  • Extended run times – up to 8 hours – with 5-gallon fuel tank.
  • Costly waste is reduced by a spill plate that directs excess material into the tub.
  • Tackle stiff mix designs, and handle up to 1-inch aggregate, with a powerful hydraulic drive.
  • Convenient access forklift pockets from any side of the mixer.
  • Drive and dump controls easily accessible and located above the engine cowling.
  • Greasable paddle shaft seal provides long service life.
12cuft Hydraulic Mortar Mixer Unit Specifications
Capacity 12 ft³ 340 L
Bags 3-4
Max. Aggregate Size 1 in 25.4 mm
Adjustable Drum Discharge Height Up to 42.5 inches
Drive System Hydraulic
Dump Action Hydraulic
Dimensions & Weights
Overall Length 73.5 in 1917.7 mm
Overall Width 35.0 in 889 mm
Overall Height 45.0 in 1143 mm
Operating Weight 1580 lb 716.68 kg
Engine Specifications
Engine Make/Model Honda / GX390
Start Method Recoil
Engine Power 11.7 HP 8.7 kW
Fuel Type Gasoline

Find our line of Masonry Mixers for sale or rent HERE.

Additional information

Weight 1580 lbs
Dimensions 73.5 × 35 × 45 in
