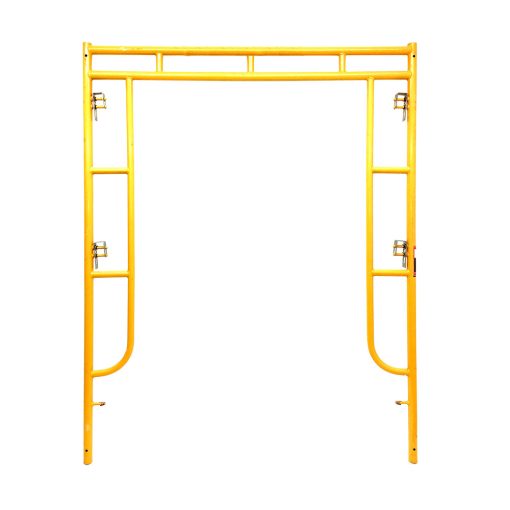

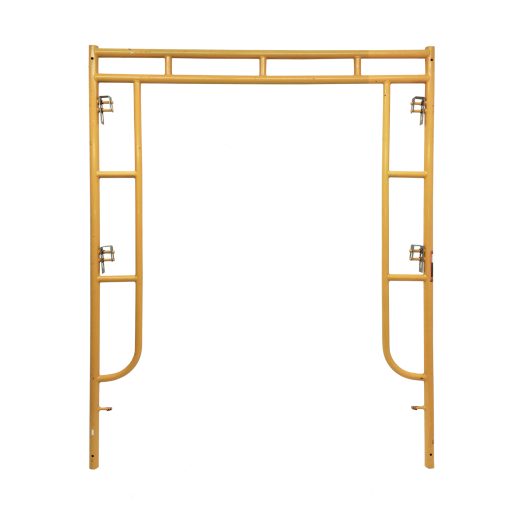

5’ X 6’ 6″ BJ-Style Walk-Thru Scaffold Frame


5’ X 6’ 6″ BJ-Style Walk-Thru Scaffold Frame


5’x6’6″ Walk Thru Frame that Matches Bil-Jax Style Scaffolding.


5’X6’6″ BJ-Style Walk-Thru Scaffold Frame

These 5ft X 6ft 6in BJ-Style Walk-Thru Frames match Bil-Jax scaffolding in that they have the same dimensions and are interchangeable. They are walk-thru style designed to create a long multi-level work platforms, allowing workers to pass through frames on the lower platforms. The 5ft X 6ft 6in BJ-Style Walk-Thru Frame will not match up with Safeway or Waco style frames as the pin sizes and pin holes are slightly different.

Walk-Thru Scaffolding Frame Specifications:

Demensions: 5′ X 6’6″

Frame Leg: 1.625″ (1 5/8″)

Wall Thickness: 0.09″

Lock Spacing: 27-3/4″

Lock Type: C-Lock

Drilled Hole: 90 Degrees

Finish: Powder Coat Yellow

High grade Q-235 steel

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. These scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. This scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame

Additional information

Weight 52.25 lbs
