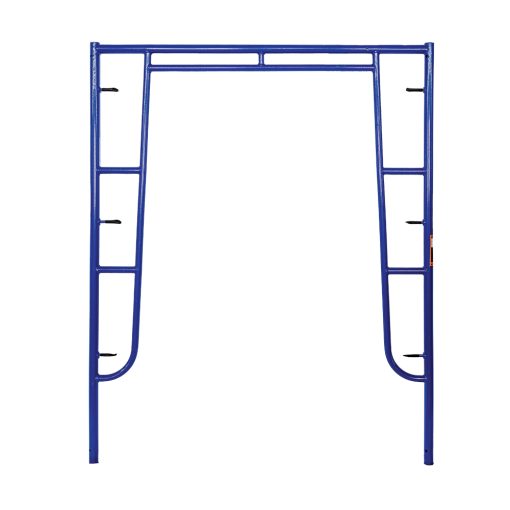

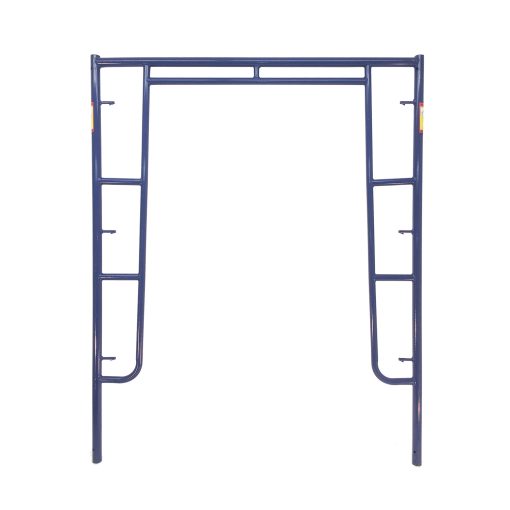

5’X6’4″ S-Style Masonry Walk-Thru Scaffold Frame


5’X6’4″ S-Style Masonry Walk-Thru Scaffold Frame


5′ X 6’4″ S-Style Masonry Walk Thru Scaffold Frame

WT. 46.60 lbs

SKU: WT56.4 Category: Tags: , , ,


5’X6’4″ S-Style Masonry Scaffolding Walk-Thru Frame

This 5ftx6ft4in masonry walk-thru frame is great for masonry and any other application where a long, contiguous working platform is needed and worker access across an entire wall is important. These are our best-selling scaffolding frames.  At 5ft wide, these frames provide great stability and allow for comfortable traverse through the frames. A wheel barrow can easily pass through them. These frames have been tested at Texas A&M. A scaffolding set will hold, on average, 41,000 lbs. Build the perfect scaffold work platform using this 5ftX6ft4in masonry walk-thru frame, our scaffold cross braces, and the proper scaffold frame coupling pins.

Masonry Scaffolding Frame Specifications:

Safeway Style Scaffold Frame

Frame Leg: 1-11/16″

Wall Thickness: 0.095″

Top Lock: 8-1/2″

Lock Type: Drop Lock

Drilled Hole: 45 degrees

Finish: Powder Coat Blue

Weight: 46.60 lbs

High grade Q-235 steel

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. These scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. This scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame

Additional information

Weight 46.60 lbs
Dimensions 76 × 60 × 2 in
