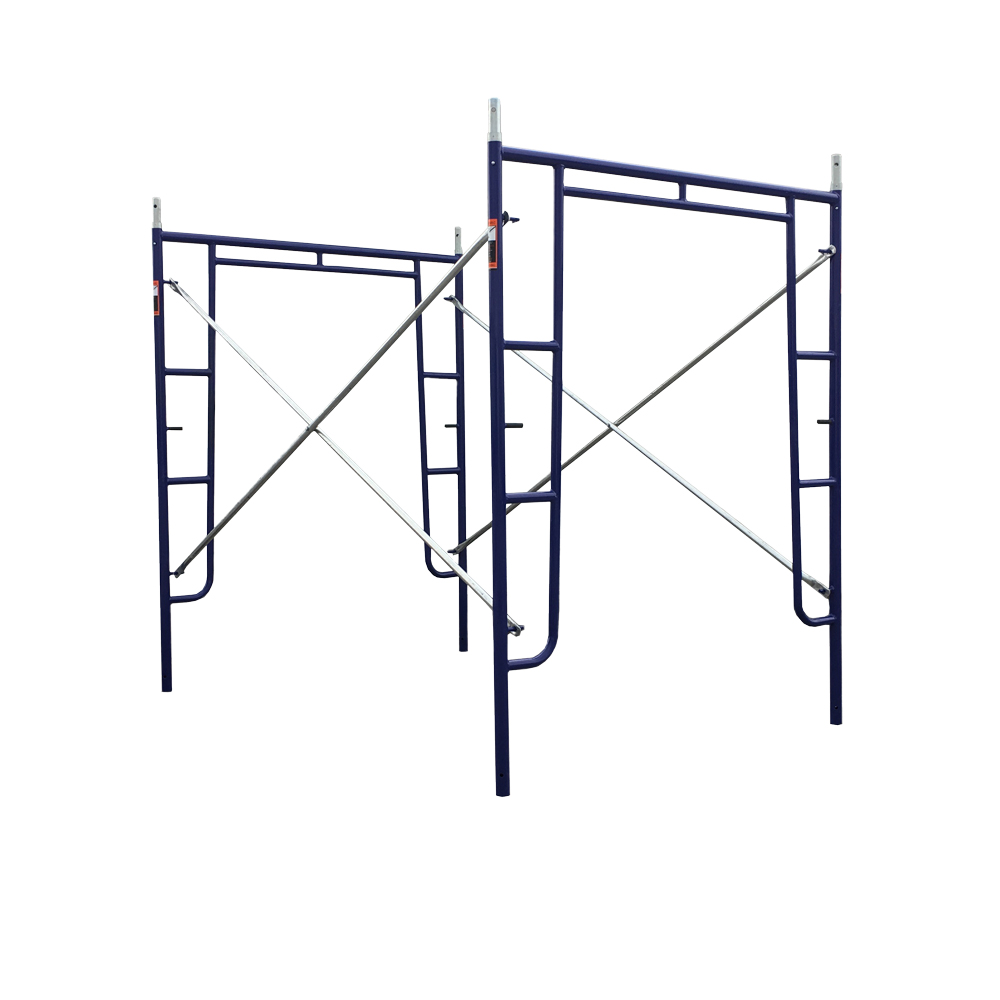

5ft X 6ft 4in S-Style Walk-Thru Scaffold Frame Set


5ft X 6ft 4in S-Style Walk-Thru Scaffold Frame Set


5’X6’4″ S-Style Walk-Thru Scaffold Frame Set

Weight: 120.44 lbs


5’X6’4″ S-Style Walk-Thru Scaffold Frame Set

This 5ftx6ft4in walk-thru frame set is great for masonry and any other application where a long, contiguous working platform is needed and worker access across an entire wall is important. These are our best-selling scaffolding frames.  At 5ft wide, these frames provide great stability and allow for comfortable traverse through the frames. A wheel barrow can easily pass through them. These frames have been tested at Texas A&M. A scaffolding set will hold, on average, 41,000 lbs. The 5ftx6ft4in walk-thru frame set includes 7ft scaffold cross braces, coupling pins and spring clips.

Scaffolding Set includes:

2 USA-610B frames

2 USA-303 7′ cross braces (can upgrade to 10′)

4 USA-104 coupling pins

4 USA-113 spring clips


41,000 lbs weight capacity

Width 5′

Height 6’4″

Frame Leg: 1-11/16″

Wall Thickness: 0.095″

Top Lock: 8-1/2″

Lock Type: Drop Lock

Drilled Hole: 45 degrees

Finish: Powder Coat Blue

Weight Per Set: 120.44 lbs

Frame Style: Safeway

High grade Q-235 steel

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. These scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. This scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Our most popular frame style! Works great for masonry projects.

Additional information

Weight 120.44 lbs
Dimensions 76 × 60 × 7 in
