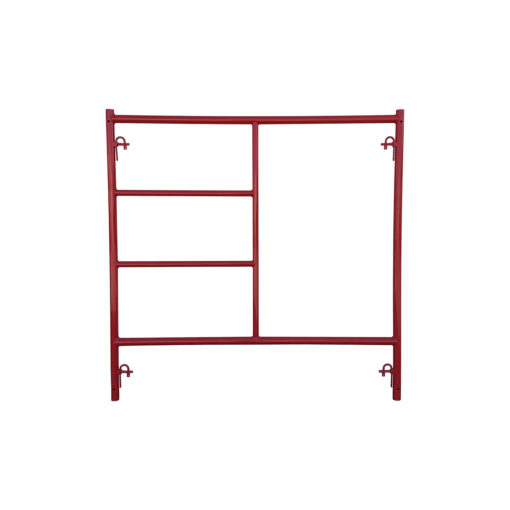

5ft x 5ft1in W-Style Single Ladder Scaffold Frame
The Waco style 5ftx5ft1in single ladder frame is a versatile single ladder scaffolding frame. Small enough for painting and interior applications. Strong enough for exterior commercial projects. Build the perfect scaffold work platform using this 5ftx5ft1in single ladder frame, our scaffold cross braces, and the proper scaffold frame coupling pins.
Weight: 41.2 lbs
Frame leg diameter: 1-5/8″
Wall thickness: 0.090″
Top lock: 7″
Lock type: candy cane
Drilled hole: 90 degrees
Finish: powder coat red
High grade Q-235 steel
Need a different size or style of scaffolding frame? Shop all our scaffold frames HERE.
At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. These scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. This scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.
Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame
