3’X6’8″ Snap-On Walk-Thru Scaffold Frame Set


3’X6’8″ Snap-On Walk-Thru Scaffold Frame Set


USA-368WT 3ft X 6ft 8in Snap-On Walk Thru Scaffold Frame Set

Weight: 94 Lbs



3’X6’8″ Snap-On Walk-Thru Scaffold Frame Set

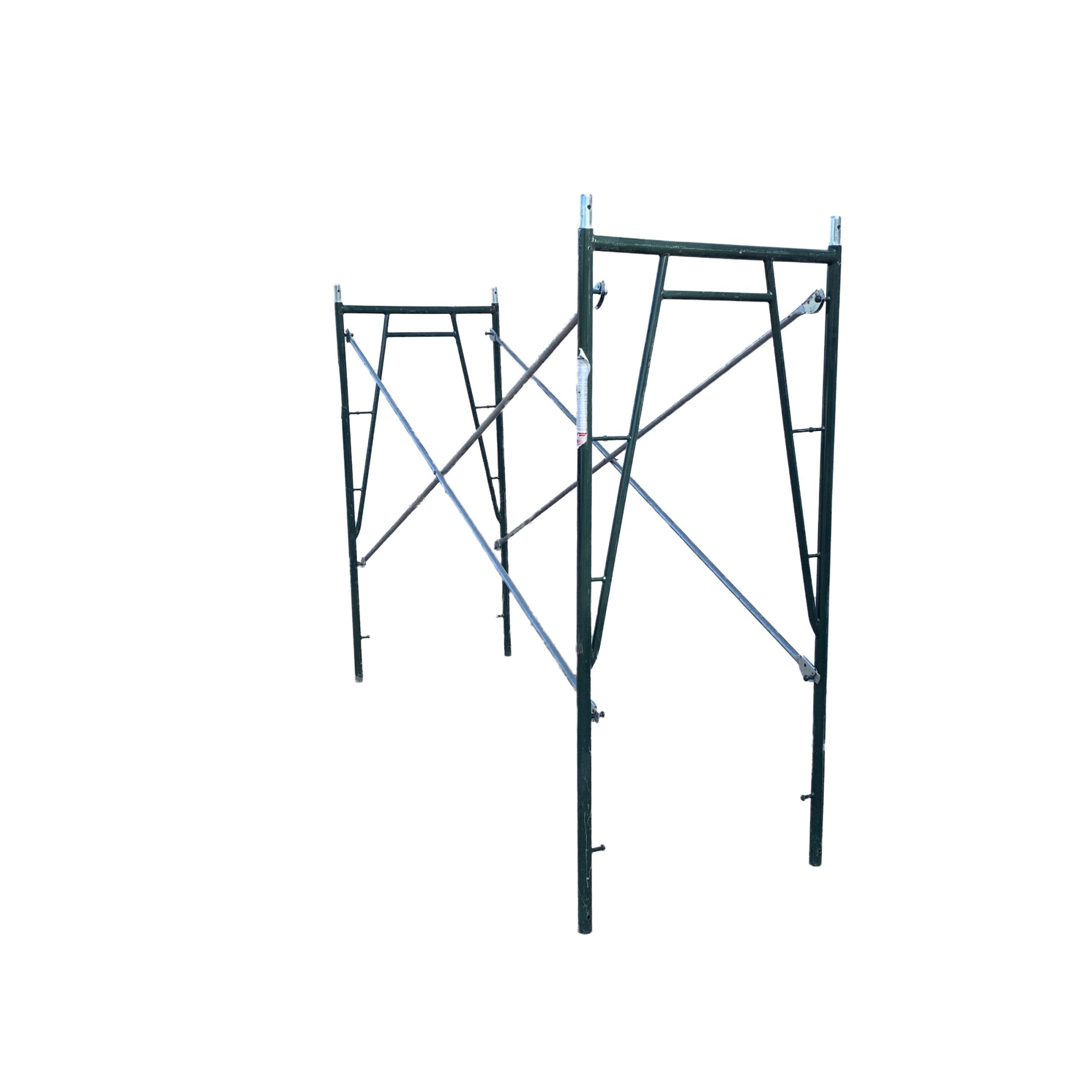

This Snap-On Walk-Thru Scaffold Set comes with two 3’X6’8″ frames, two 10′ cross braces and the coupling pins. Snap-On Scaffolding is popular with masonry and stucco contractors and is predominately used in the western United States. With this type of scaffolding the cross braces have latching mechanisms that attach to pins on the frames.

Snap-On Scaffolding is commonly used by stucco contractors, as well as brick and stone masons. This scaffolding is unique compared to the other types of scaffolding we sell (Safeway, Waco, and Bil-Jax) in that the locking mechanism is on the cross braces, which lock onto pins on the scaffolding frame. Our snap-on scaffolding sets come with 10′ cross braces.

Each Scaffolding Set Includes:

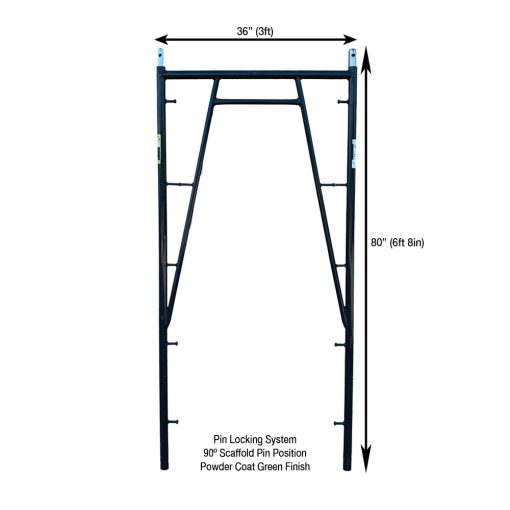

Snap-On Specifications

  • Width: 3′
  • Height: 6’8″
  • Cross Brace Size: 10′
  • Scaffold Pin Position: 90 degrees
  • Weight: 94lbs

See our other Snap-On Scaffolding Products:

Snap-On Frames

Guardrails for Snap-On

Guardrail Posts for Snap-On

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame

Additional information

Weight 94 lbs
Dimensions 6 × 36 × 80 in
