3’X3’1″ W-Style Single Ladder Scaffold Frame


3’X3’1″ W-Style Single Ladder Scaffold Frame


WT. 21.8 LBS


3ftX3ft1in W-Style Single Ladder Scaffold Frame

This 3ftx3ft1in single ladder frame is a versatile Waco style scaffold frame. Small enough for painting and interior applications. Strong enough for exterior commercial projects. Build the perfect scaffold work platform using this 3ftx3ft1in single ladder frame, our scaffold cross braces, and the proper scaffold frame coupling pins.

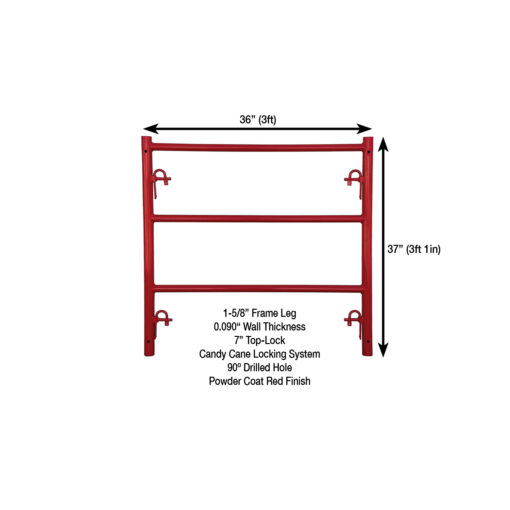

Width: 3′

Height: 3’1″

Weight: 21.8 lbs

Frame leg diameter: 1-5/8″

Wall thickness: 0.090″

Top lock: 7″

Lock type: candy cane

Drilled hole: 90 degrees

Finish: powder coat red

High grade Q-235 steel

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. These scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. This scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Need a different size or style of scaffolding frame? Shop all our scaffold frames HERE.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame

Additional information

Weight 21.8 lbs
Dimensions 37 × 36 × 5 in
