2ft X 5ft 10K Shoring Frame/Shoring Jack


2ft X 5ft 10K Shoring Frame/Shoring Jack


2’X5′ H.L. Concrete Shoring Frame/Shoring Jack

Wt. 45.4 lbs

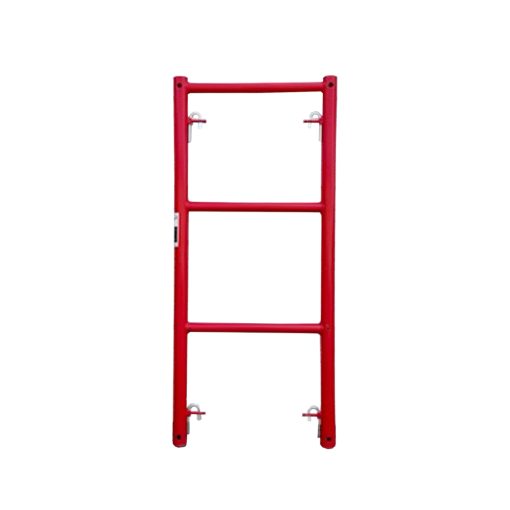

2ft X5ft H.L. 10K Concrete Shoring Frame/Shoring Jack

Use our 2ftX5ft Concrete Shoring Frame or Shoring Jack for your next concrete project. Our shoring frames are extremely strong – made from Q-235 steel and have thick walls. They can withstand a 10,000 lb weight load. The 2ftX5ft concrete shoring frame is perfect for all kinds of concrete formwork.

Accessories Include:

USA-102 Shoring Connectors

USA-133N Shoring Leveling Jack

Concrete Shoring Frame Specifications:

Weight Load: 10,000 lbs

Height: 5′

Width: 2′

Weight: 45.4lbs

Finish: powder coat red.

First Lock 7″ from top of the frame

Lock style: candy cane

2.375 O.D. tube diameter

0.156″ wall thickness

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. These scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. This scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame

Additional information

Weight 45.4 lbs
Dimensions 60 × 24 × 5 in
